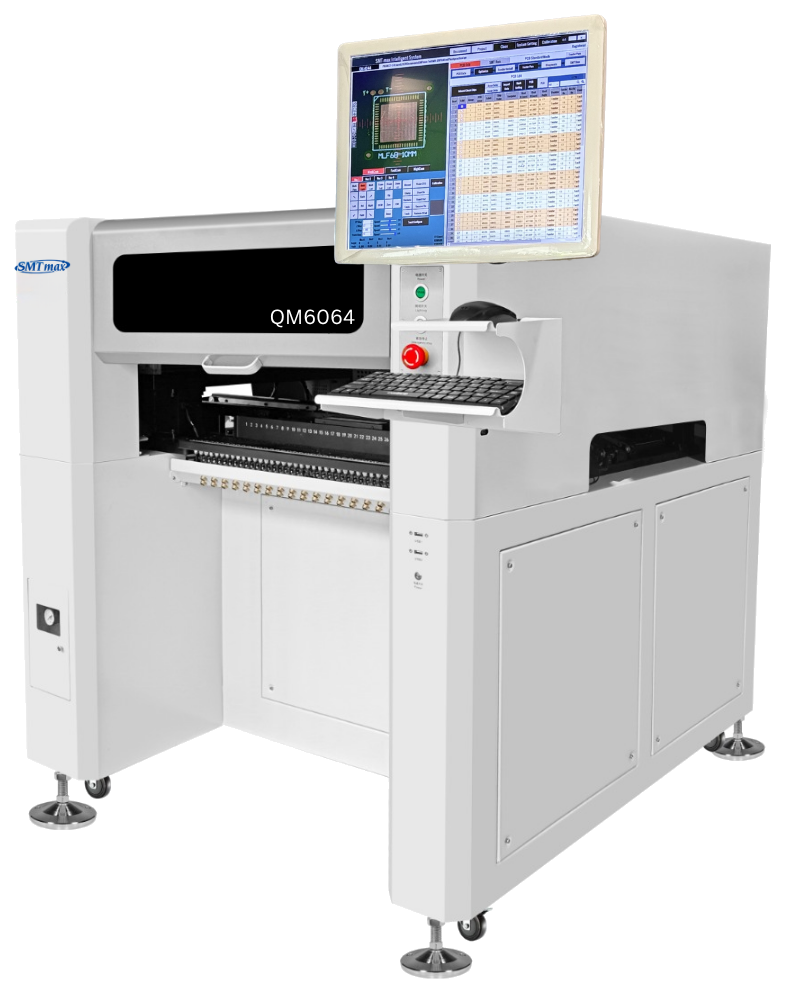

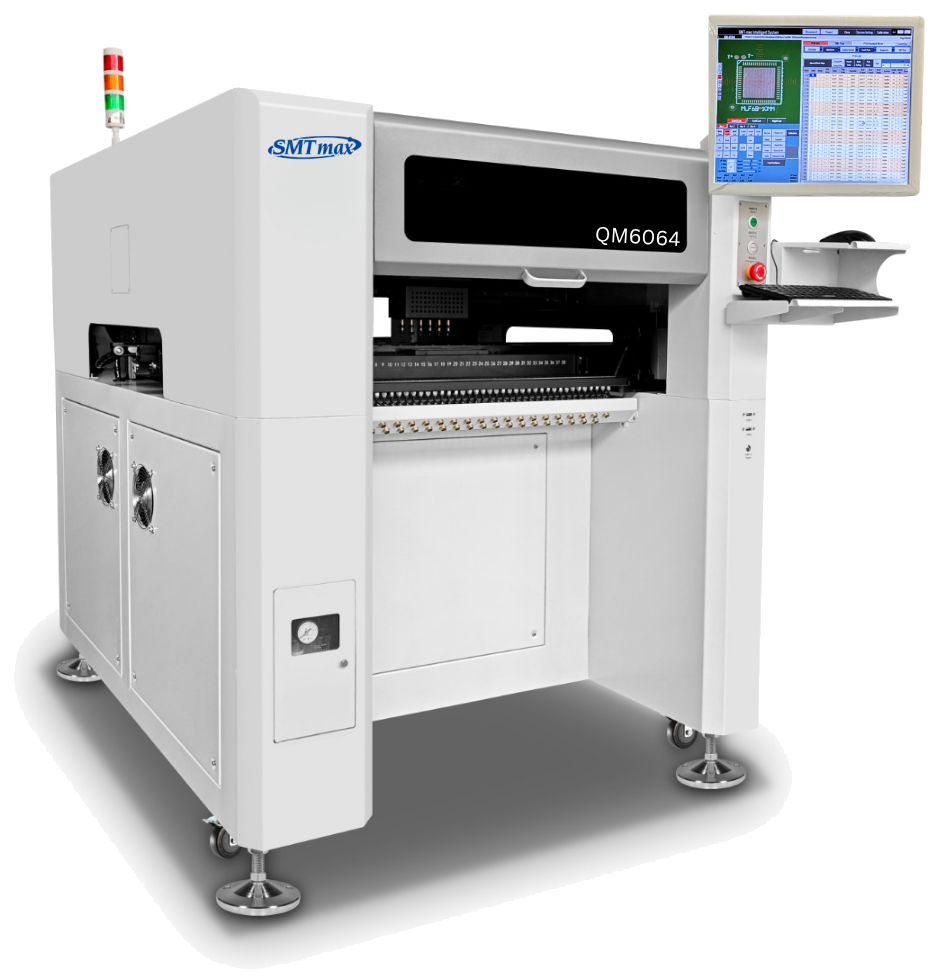

A six-head automatic pick and place machine for larger boards, higher feeder capacity and medium-batch SMT production, with a 500 × 370 mm work area and 64 feeder ports.
The standard package includes an automatic conveyor system, computer and monitor, nozzle set, PPM operation software, pneumatic and electric feeder-ready ports, and waffle tray mounting brackets.
The QM6064 is designed for manufacturers that need more feeder capacity, a larger working area and higher placement throughput. Its 500 × 370 mm PCB area makes it well suited for larger boards, panelized assemblies and mixed component jobs.
The vision system combines six high-speed identification cameras with one HD high-precision camera for fine-pitch components such as ICs and BGAs. The machine can recognize and pick with all six heads while automatic board positioning and fiducial correction support repeatable production.
Use this section to show customers the larger work area, feeder capacity, vision system and real placement operation of the QM6064.
| Estimated throughput | 9,000–10,000 PPH |
|---|---|
| Working area | 500 × 370 mm (19.7 × 14.6 in) |
| Placement heads | 6 |
| Feeder capacity | 64 feeder ports |
| Placement accuracy | ±0.01 mm |
| Repeat accuracy | ±0.02 mm |
| Component capability | 0201, 0402, 0603, 0805, 1206, tube components, ICs, BGAs and mixed SMT packages |
| Maximum component height | ≤ 7 mm |
| Vision system | 1 MARK camera, 6 high-speed ID cameras and 1 HD high-precision camera |
| PCB handling | Three-stage left-to-right conveyor with automatic PCB positioning |
| Mark positioning | Manual / automatic |
| Programming | Automatic programming after importing PCB coordinates |
| XY motion | Double linear motion guide + ball screw |
| Display | 17-inch industrial display |
| Power | 110 V or 220 V AC, 50/60 Hz |
| Average power | 600 W |
| Air requirement | 73–87 PSI |
| Z-axis max step | 20 mm |
| Drive system | AC servo motor |
| Machine size | Approx. 52 × 54 × 55 in |
| Net weight | 438 kg |
Send us your PCB dimensions, BOM and production goals. We'll help confirm machine fit, component compatibility and feeder requirements before you order.
