From compact tabletop batch ovens to fully convection inline production systems, compare the SMTmax reflow lineup by board size, production method and throughput requirements.
The AS-5010, AS-5080 and AS-6070 provide progressively larger tabletop working areas for prototypes and batch assembly. The AE-F600C and WP-8800 move into conveyorized fully convection processing for continuous SMT production.
Choosing the right oven depends on PCB size, solder paste profile, production volume and whether your process is batch or inline.

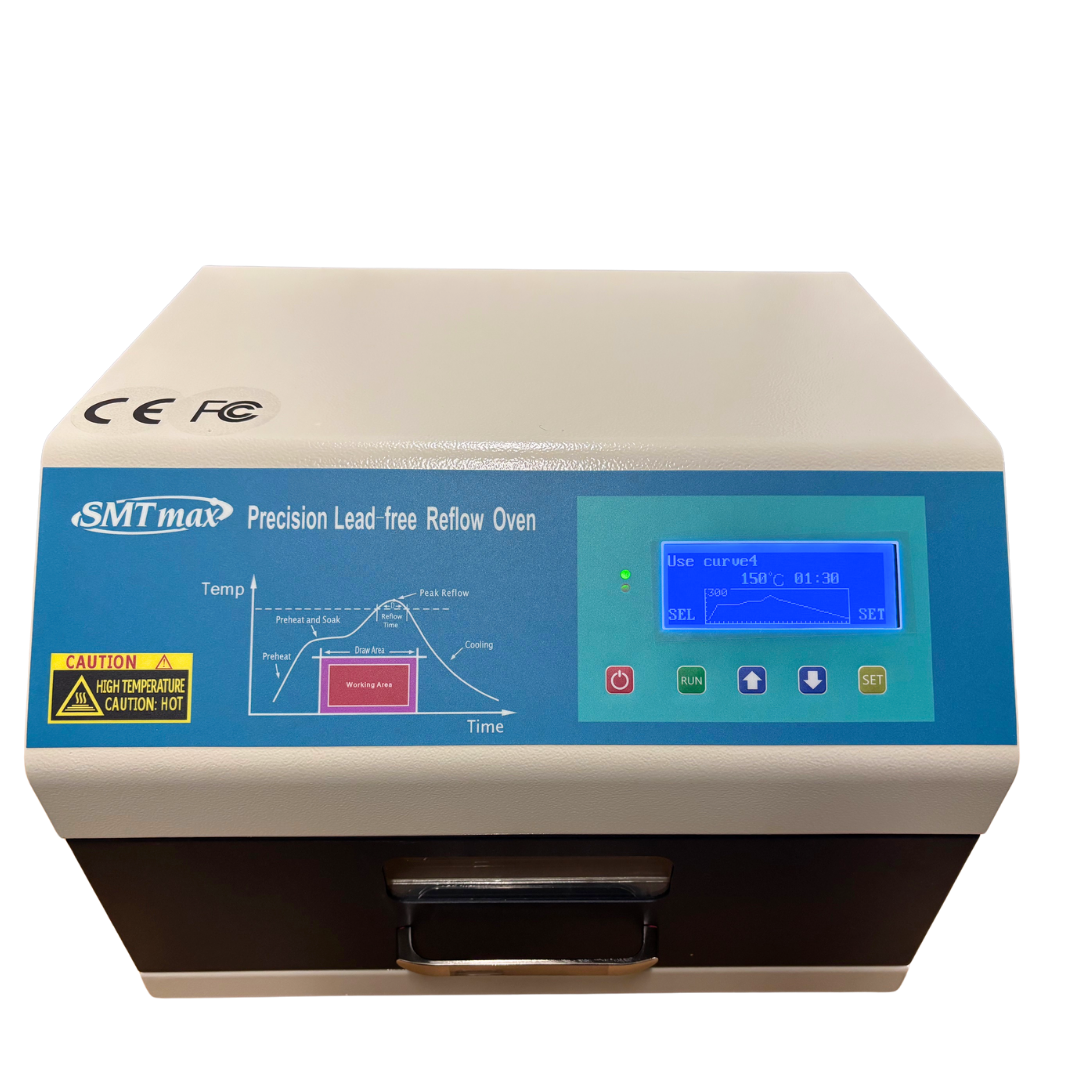

Compact
Compact batch reflow oven for prototypes, labs, repair work and small PCB production.

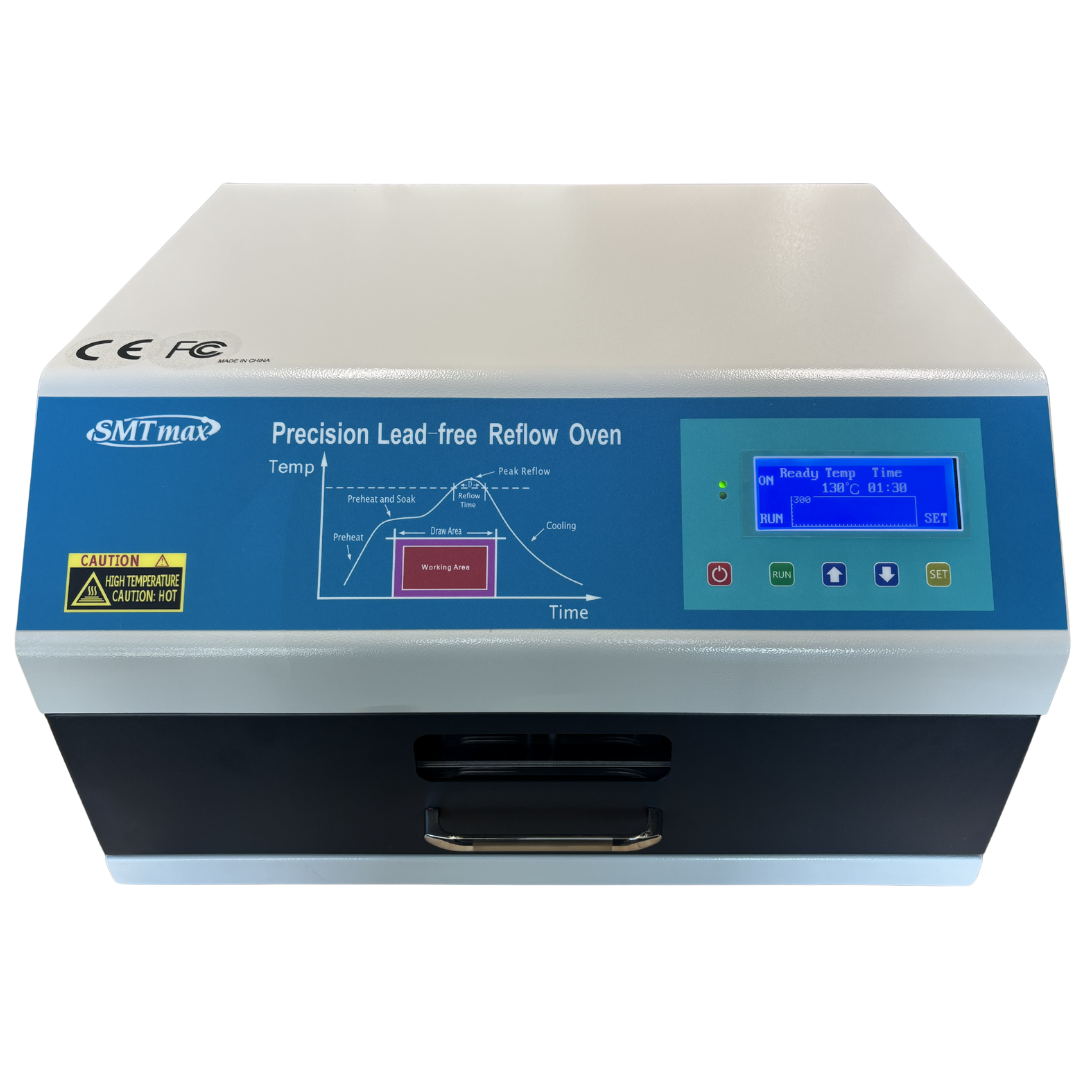

Popular Tabletop
Larger tabletop reflow platform with more board capacity while keeping a compact batch-production format.

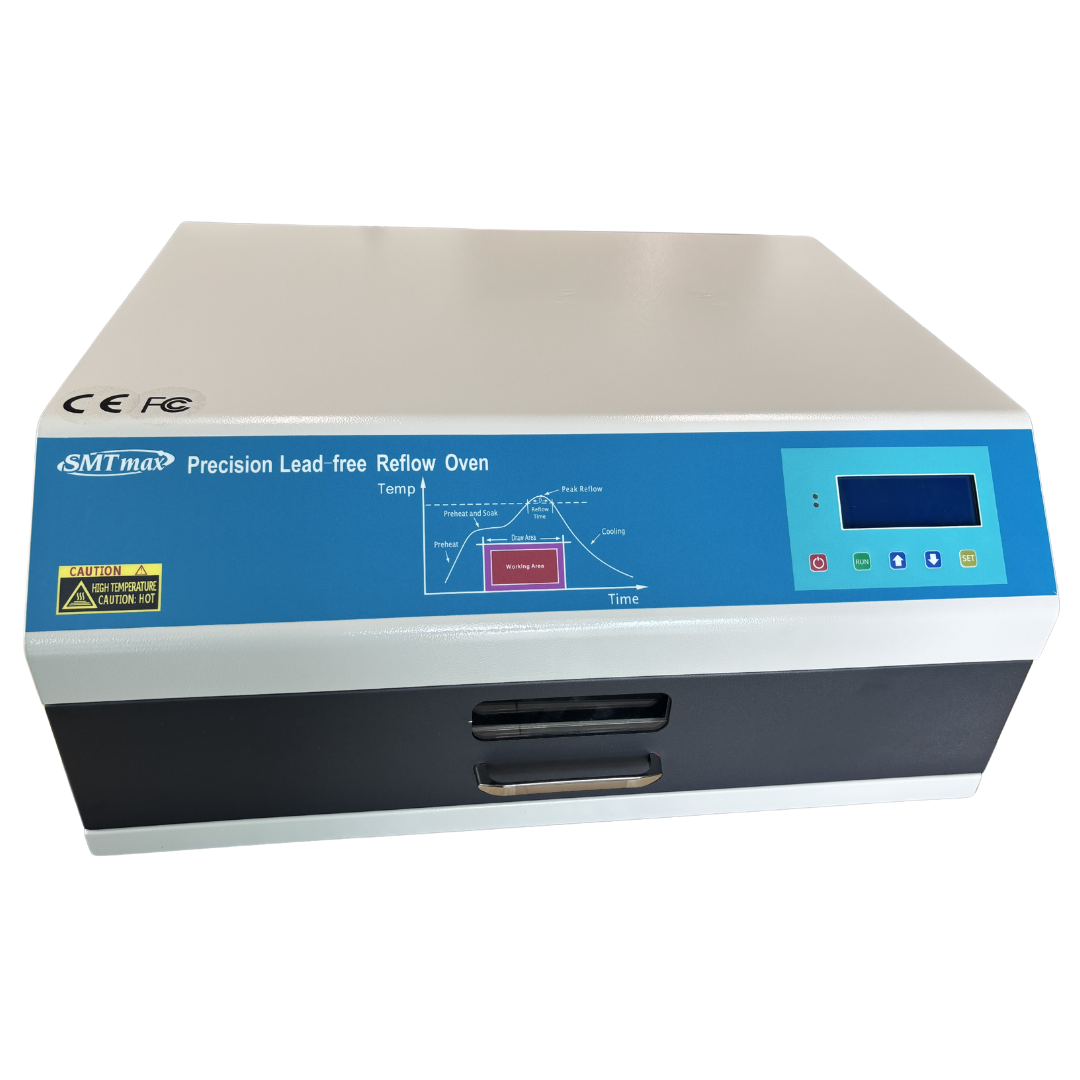

Large Tabletop
Large-format tabletop reflow oven for users who need more batch area without moving to an inline conveyor system.
Production Inline
Compact conveyorized 3-zone convection reflow oven with touchscreen control and built-in thermal profiling support.

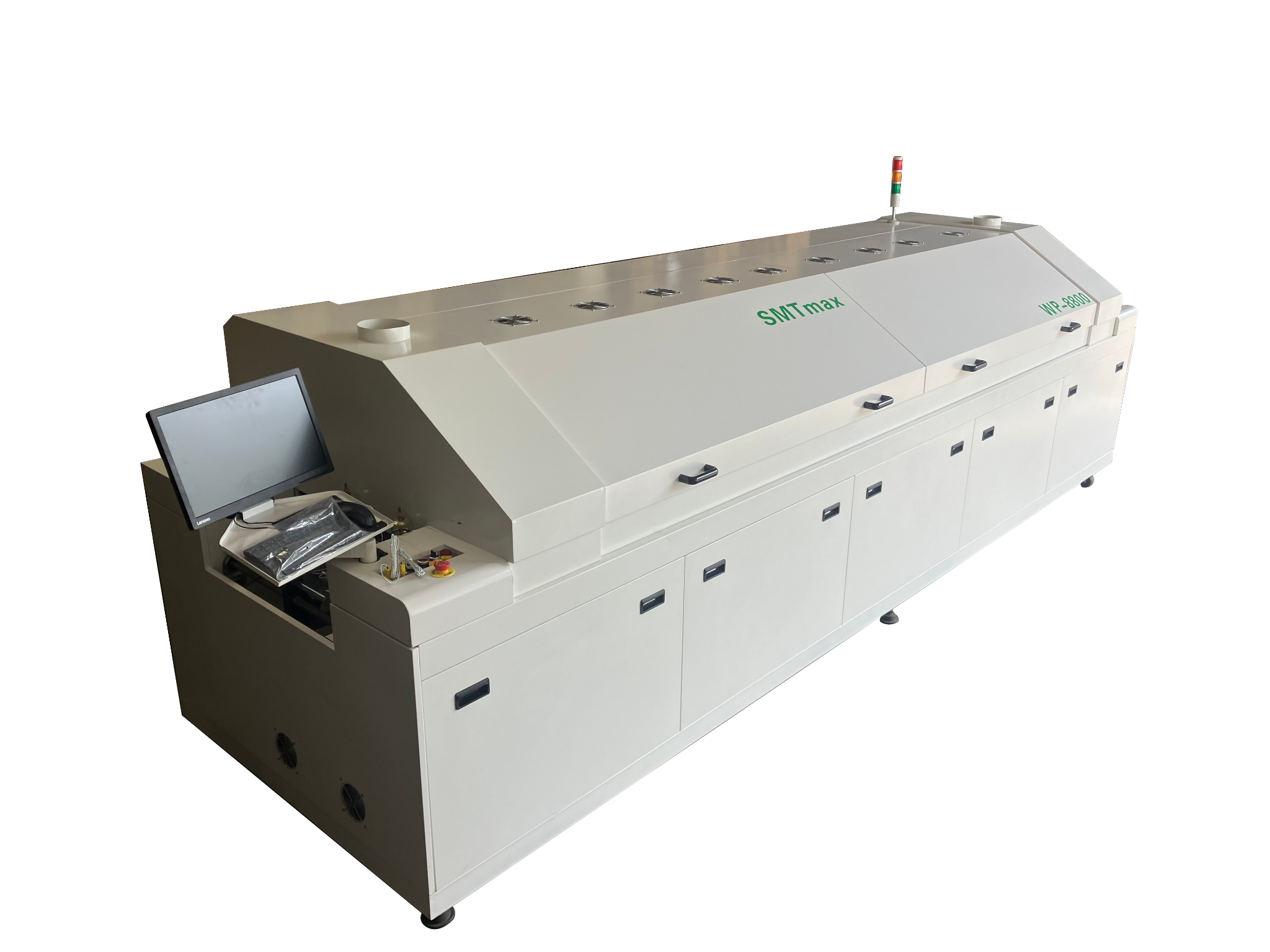

High Capacity
High-capacity inline reflow platform with eight top and eight bottom heating zones and a wide conveyor system.
| Specification | AS-5010 | AS-5080 | AS-6070 | AE-F600C | WP-8800 |
|---|---|---|---|---|---|
| System type | Tabletop batch | Tabletop batch | Tabletop batch | 3-zone inline convection | Inline convection |
| Heating platform | IR + hot air circulation | IR + hot air circulation | IR + hot air circulation | 3 independent zones | 8 top + 8 bottom zones |
| Working area / conveyor | 250 × 200 mm | 350 × 300 mm | 500 × 400 mm | 10 in max PCB width | 600 mm conveyor |
| Power | 1,600 W max | 2,400 W max | 3,600 W max | ~12.5 kW | 220 V 3-phase |
| Best suited for | Prototyping & small boards | Small-batch SMT assembly | Larger batch boards | Small-to-medium inline production | Higher-volume production |
Choose the smallest tabletop platform for compact boards, prototyping, repair and lower-volume reflow work.
Step up when you want more board area in a tabletop format while keeping the process simple and batch based.
Use the largest tabletop model when board size is the priority but an inline conveyor system is not yet required.
Move to continuous fully convection processing when production requires conveyorized inline reflow and computerized control.
Choose the larger inline platform for wider boards and higher-volume production with extensive multi-zone heating control.
Send SMTmax your PCB dimensions, solder paste profile and production requirements. We can help identify the appropriate reflow platform.
