Choose from compact manual printers for prototypes and small batches, a precision manual platform for finer alignment, or a semi-automatic printer for more repeatable production.
The YSJ-250 provides a simple, economical entry point for applying solder paste. The STP-350 adds finer X, Y and Z adjustment, while the AE-3088D automates squeegee travel and printing parameters for more consistent production work.
Choosing the right printer depends on PCB size, stencil frame size, alignment requirements, pitch, and how much repeatability your production process requires.
Entry Level

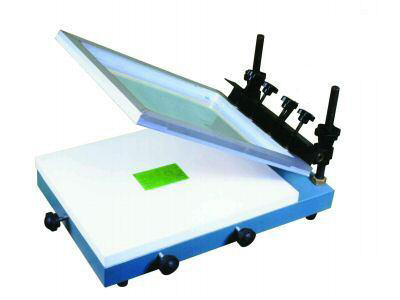

Economical manual stencil printer for prototype work, labs and low-volume PCB solder paste application.
Popular Manual

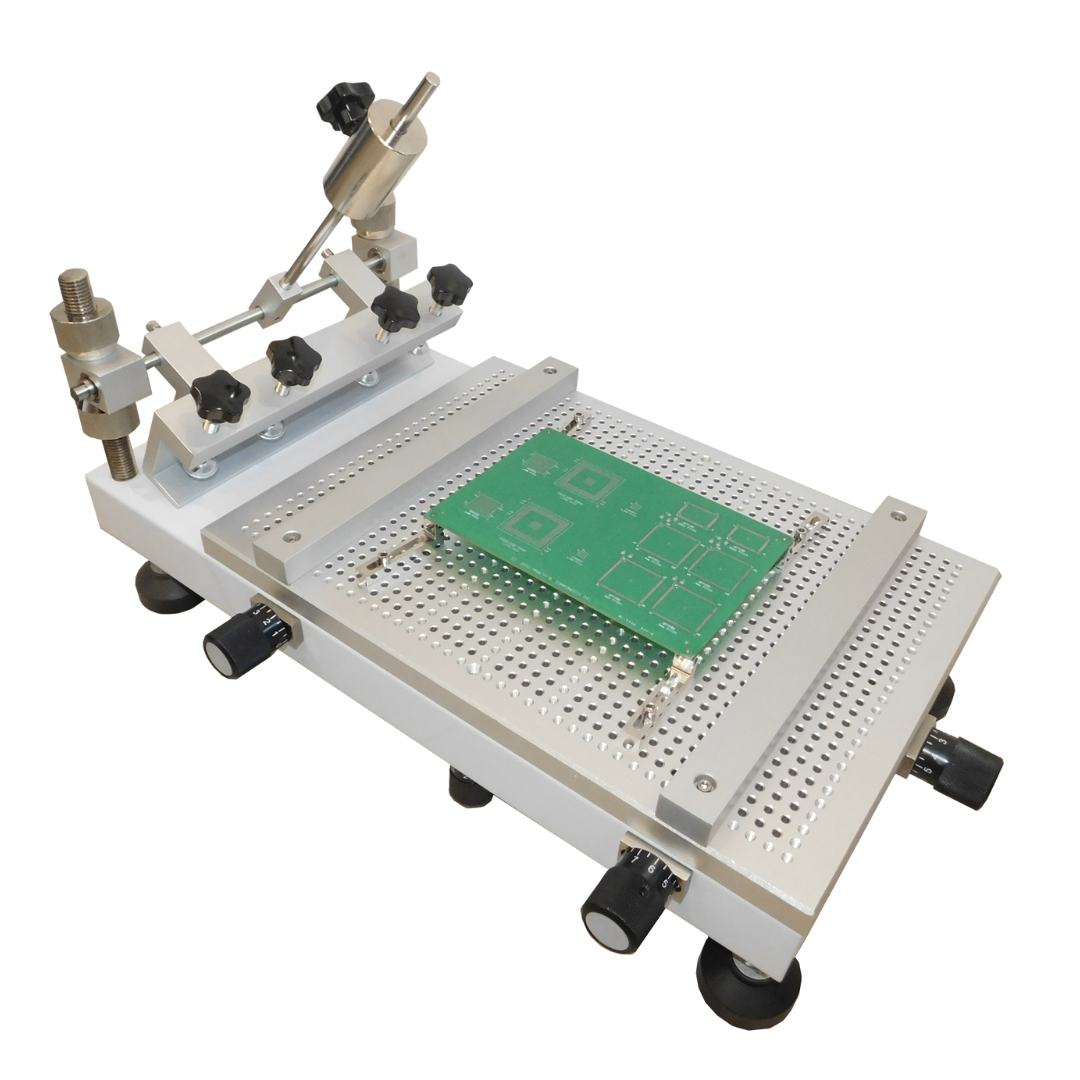

High-precision manual printer with X, Y and Z adjustment for more controlled PCB-to-stencil alignment.
Production

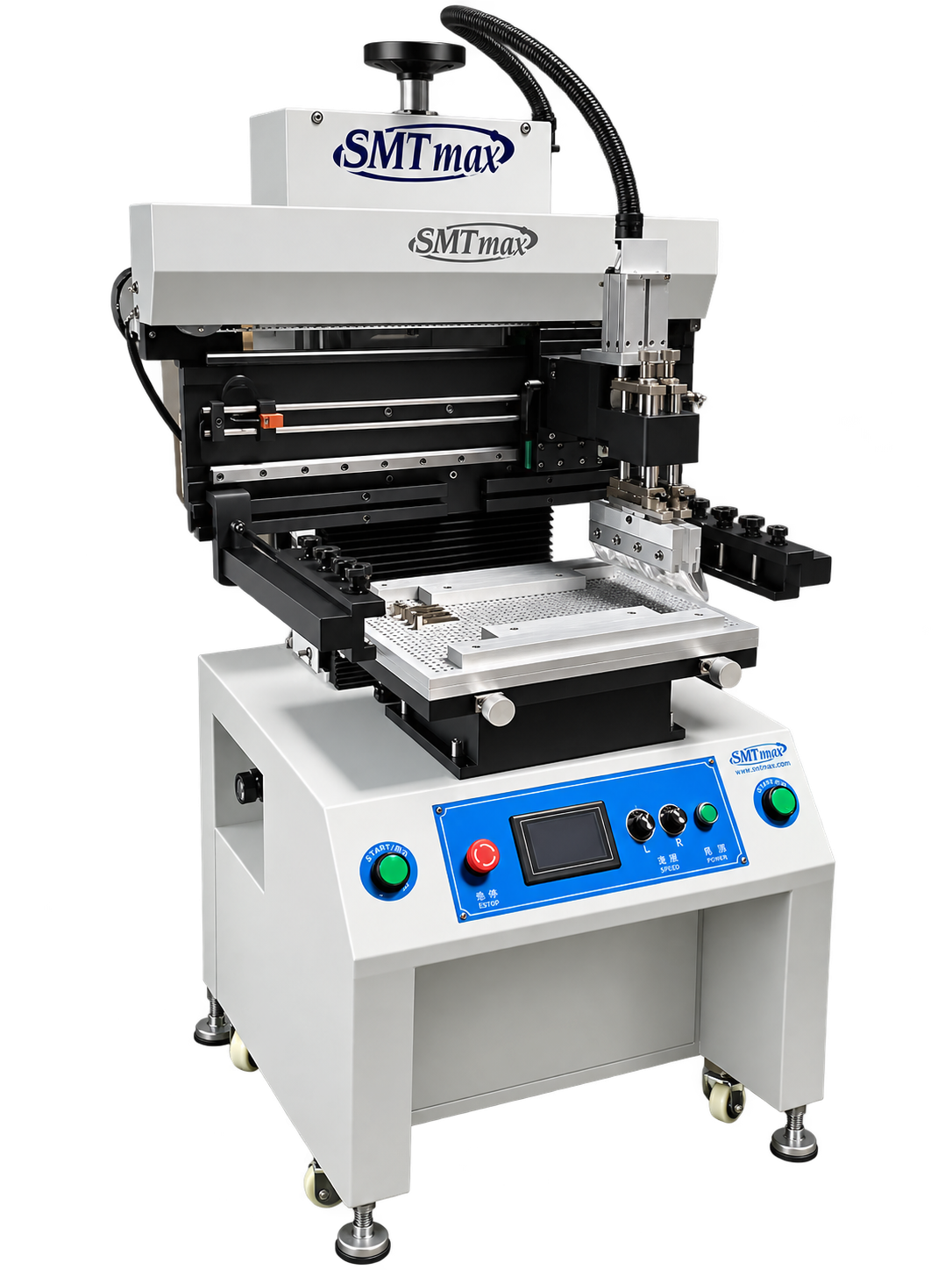

Semi-automatic production printer with programmable squeegee motion, pneumatic controls and repeatable PCB alignment.
| Specification | YSJ-250 | STP-350 | AE-3088D |
|---|---|---|---|
| System type | Manual | Manual precision | Semi-automatic |
| Working / print area | 430 × 350 mm | 450 × 330 mm | 13 × 9 in |
| Adjustment | X 20 mm / Y 80 mm | X/Y/Z 15 mm | X/Y ±10 mm / θ ±3° |
| Price | $357.50 | $945.00 | $7,144.50 |
| Best suited for | Entry-level manual printing | Higher-precision manual printing | Repeatable production printing |
Best for the most economical entry into framed-stencil solder paste printing for prototypes and low-volume jobs.
Choose this when you need finer manual alignment with X, Y and Z adjustment and a larger working area.
Move to semi-automatic printing when repeatability, programmable squeegee motion and higher production volume matter.
Send us your PCB size, stencil frame dimensions and smallest pitch. We can help match the printer to your process.
