A compact two-head pick and place machine designed for prototyping, engineering labs and small-batch in-house SMT production.
Package includes a computer and monitor, nozzle set, PPM software and a starter package of twenty 8 mm pneumatic feeders.

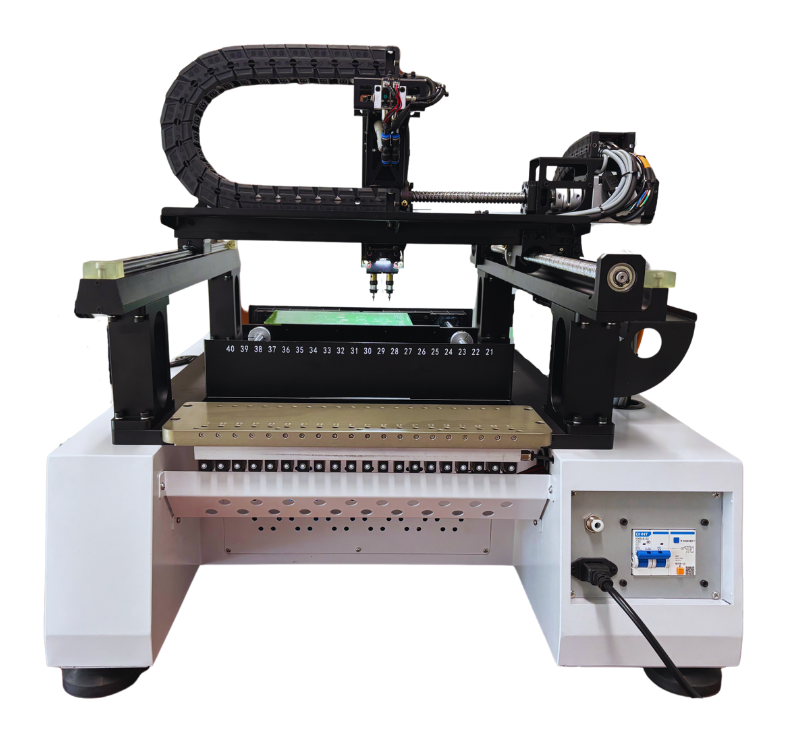

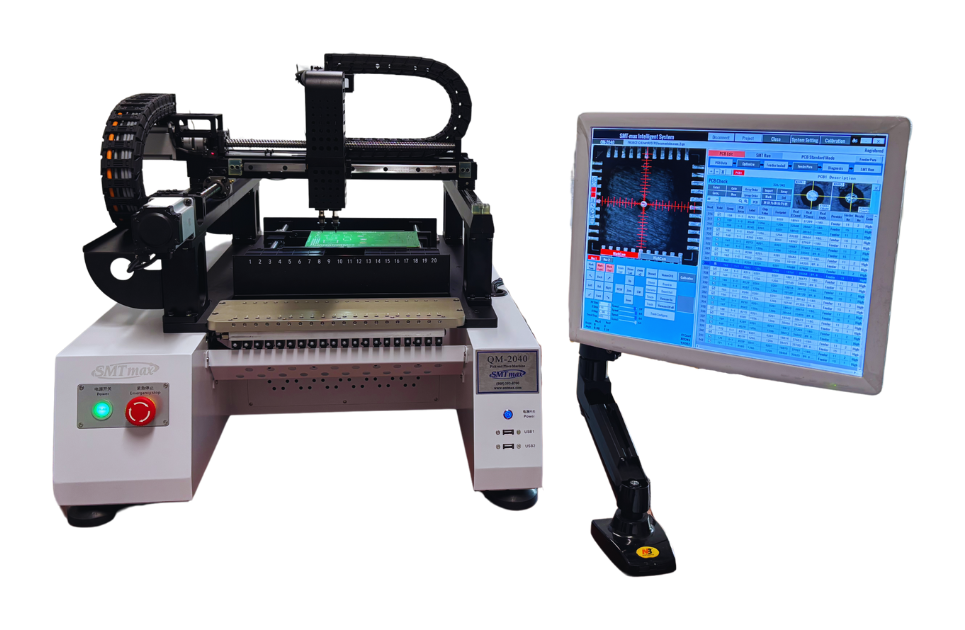

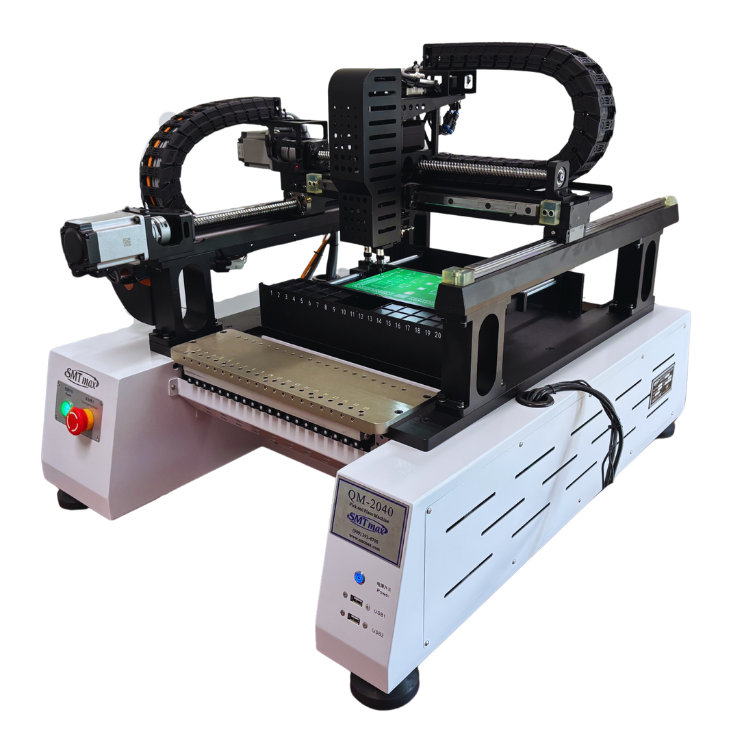

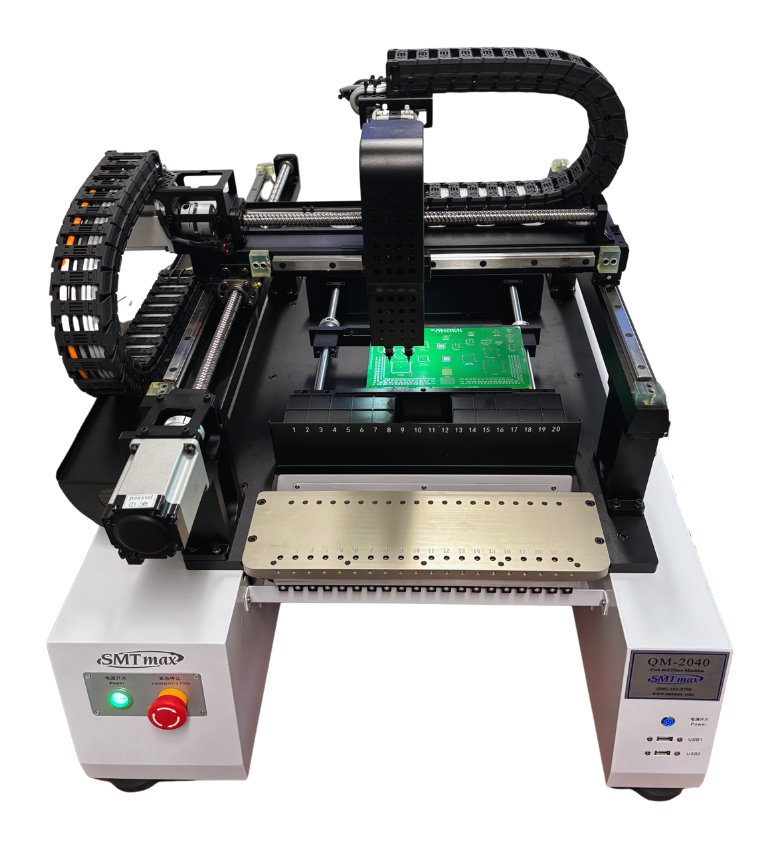

The QM2040 is a table-top automatic pick and place machine with two placement heads and a 40-feeder capacity. It is intended for companies that want to bring prototype and small-batch SMT assembly in-house without moving immediately to a larger production machine.
Its vision system supports automatic component centering for common SMT packages including SOP, QFP and BGA devices. Programming can be performed through the machine software using camera-assisted teach mode or by importing component coordinate data.
Use this section for a QM2040 overview, setup demonstration, real production run or customer-focused walkthrough.
| Estimated throughput | 2,500–4,000 PPH |
|---|---|
| Working area | 12 × 9 inches |
| Placement heads | 2 |
| Feeder capacity | 40 positions |
| Standard component capability | 0402 and larger; smaller-component upgrade available |
| Vision support | SOP, QFP, BGA and small-component centering |
| X/Y resolution | 0.0005 in |
| Positioning accuracy | 0.001 in |
| Rotational resolution | 0.045° |
| Programming | Camera teach mode and CSV coordinate import |
| Power | 110 V AC / 60 Hz or 220 V AC / 50 Hz |
| Power consumption | 750 W |
| Air requirement | 60 PSI shop air |
| Machine dimensions | 26 × 33 × 26 in |
| Net weight | 167 lb |
| Warranty | 12-month factory warranty, parts and labor |
Send us your PCB dimensions, BOM and production goals. We'll help confirm machine fit and feeder requirements before you order.
