A precision manual stencil printer with a 450 × 330 mm working area and independent X, Y and Z adjustment for controlled PCB-to-stencil alignment.
Manual printing platform with four PCB pull-out fixture legs and adjustable stencil frame positioning.
The STP-350 is a manual solder paste printer designed around a perforated PCB support bed and adjustable stencil frame. It provides 15 mm of adjustment in the X, Y and Z directions so the operator can position the PCB and stencil before printing.

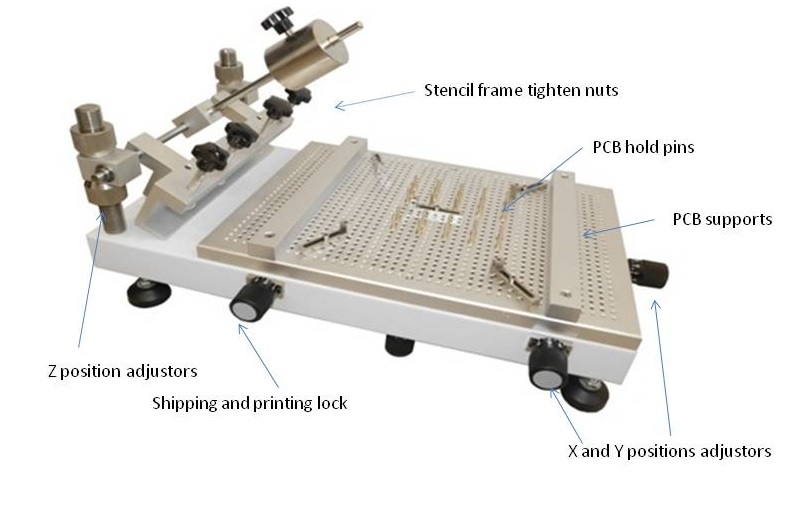

The fixture supports both single-sided and double-sided PCBs. The supplied PCB hold pins and support positions help secure the board during setup, while the stencil frame tighten nuts and Z-position adjusters provide manual control of the stencil frame.
When a product video is available, this section can show stencil mounting, PCB positioning, X/Y/Z adjustment and the manual squeegee printing process.
| Model | STP-350 |
|---|---|
| Maximum frame thickness | 38 mm |
| Working area | 450 × 330 mm |
| Maximum X adjustment | 15 mm |
| Maximum Y adjustment | 15 mm |
| Maximum Z adjustment | 15 mm |
| Fixture | 4 PCB pull-out legs |
| PCB type | Single- or double-sided PCB |
| Dimensions | 30 × 20 × 16 in |
| Squeegee / printing | Manual print |
Send us your PCB dimensions and stencil frame size. We'll help confirm whether this manual printer fits your application.
