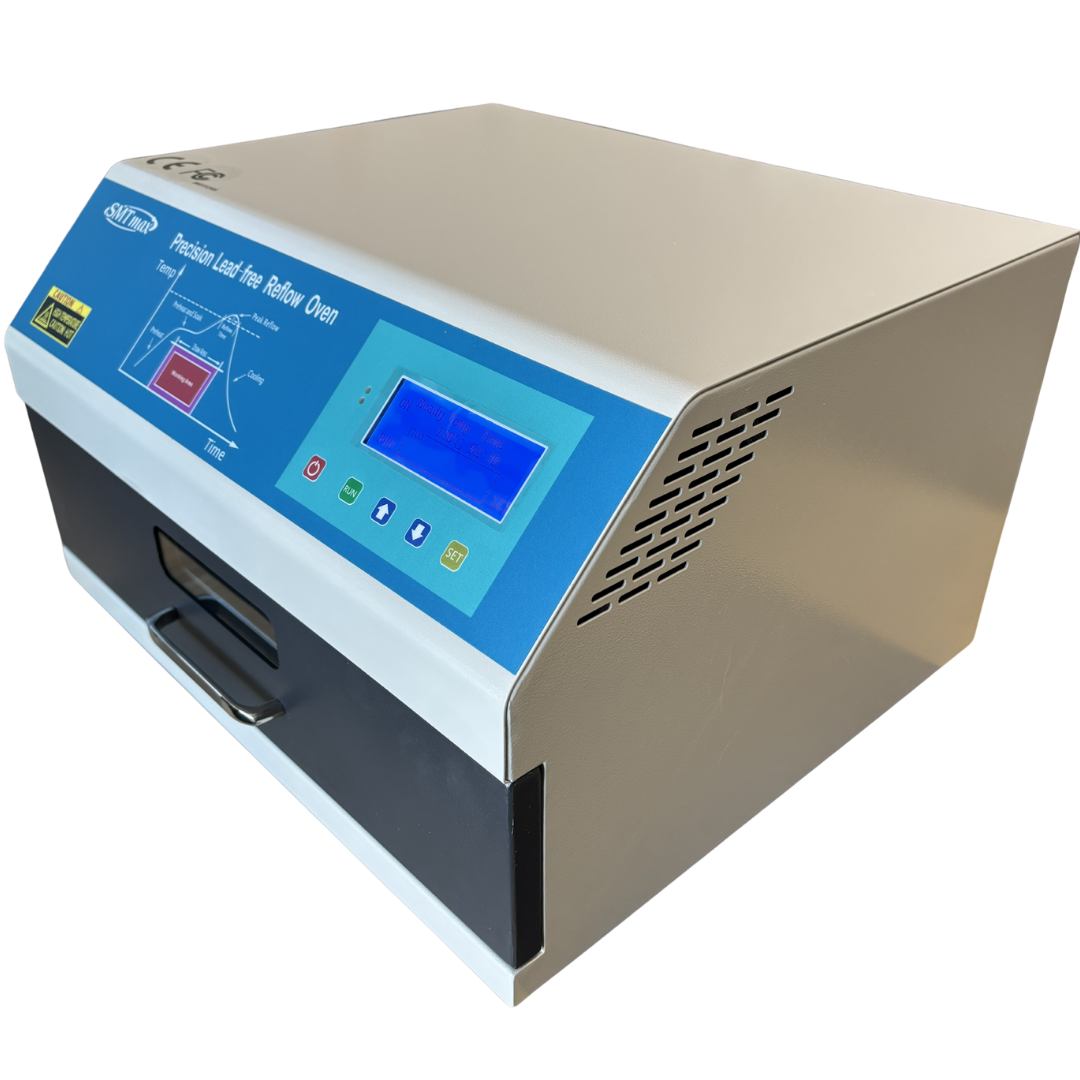

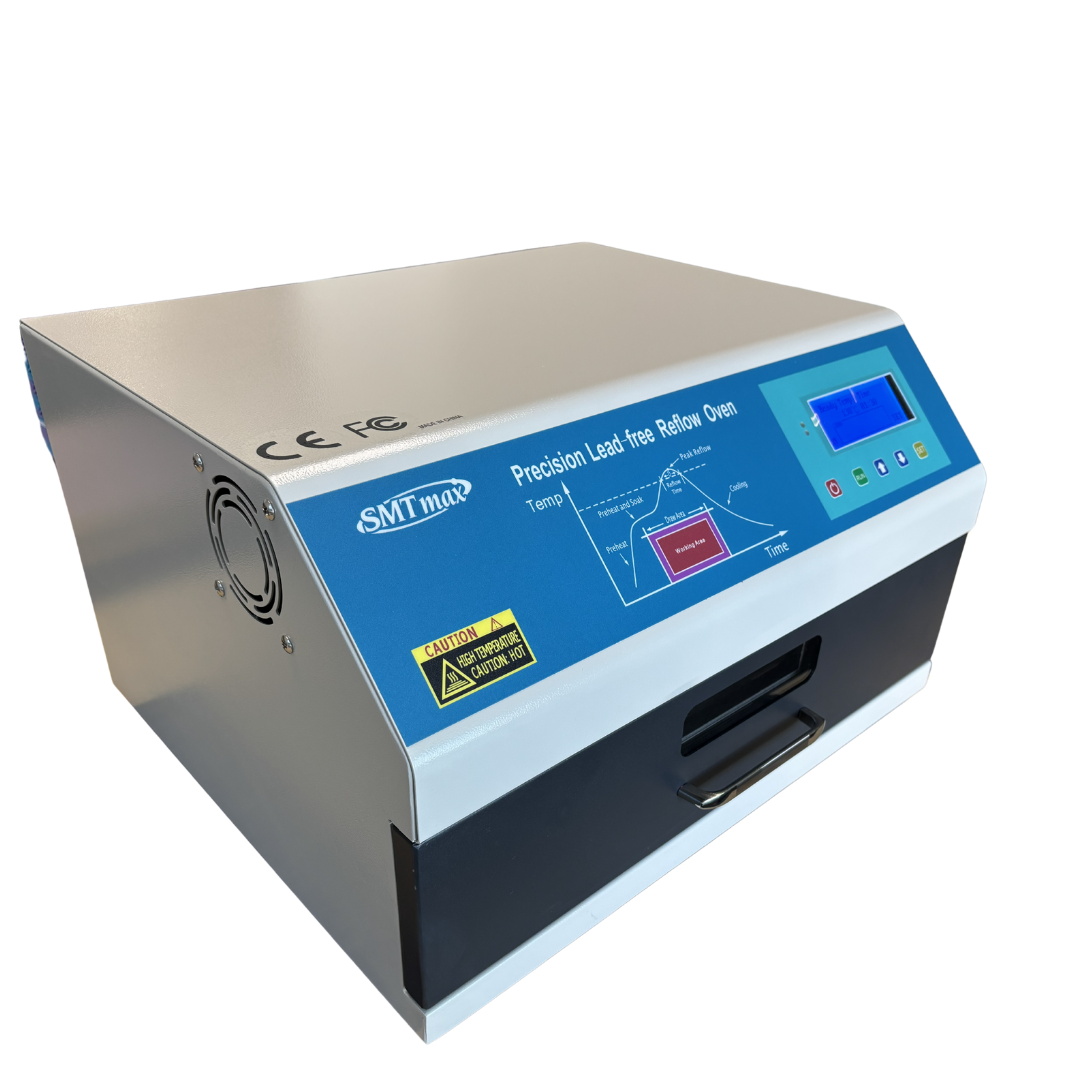

A larger programmable tabletop reflow oven for prototypes and small-batch SMT production, with a 350 × 300 mm working area and infrared plus hot-air convection heating.
Available in 110 V, with a 220 V option by order. The AS-5080 automatically runs programmed reflow profiles and displays real-time temperature information on the front LCD.

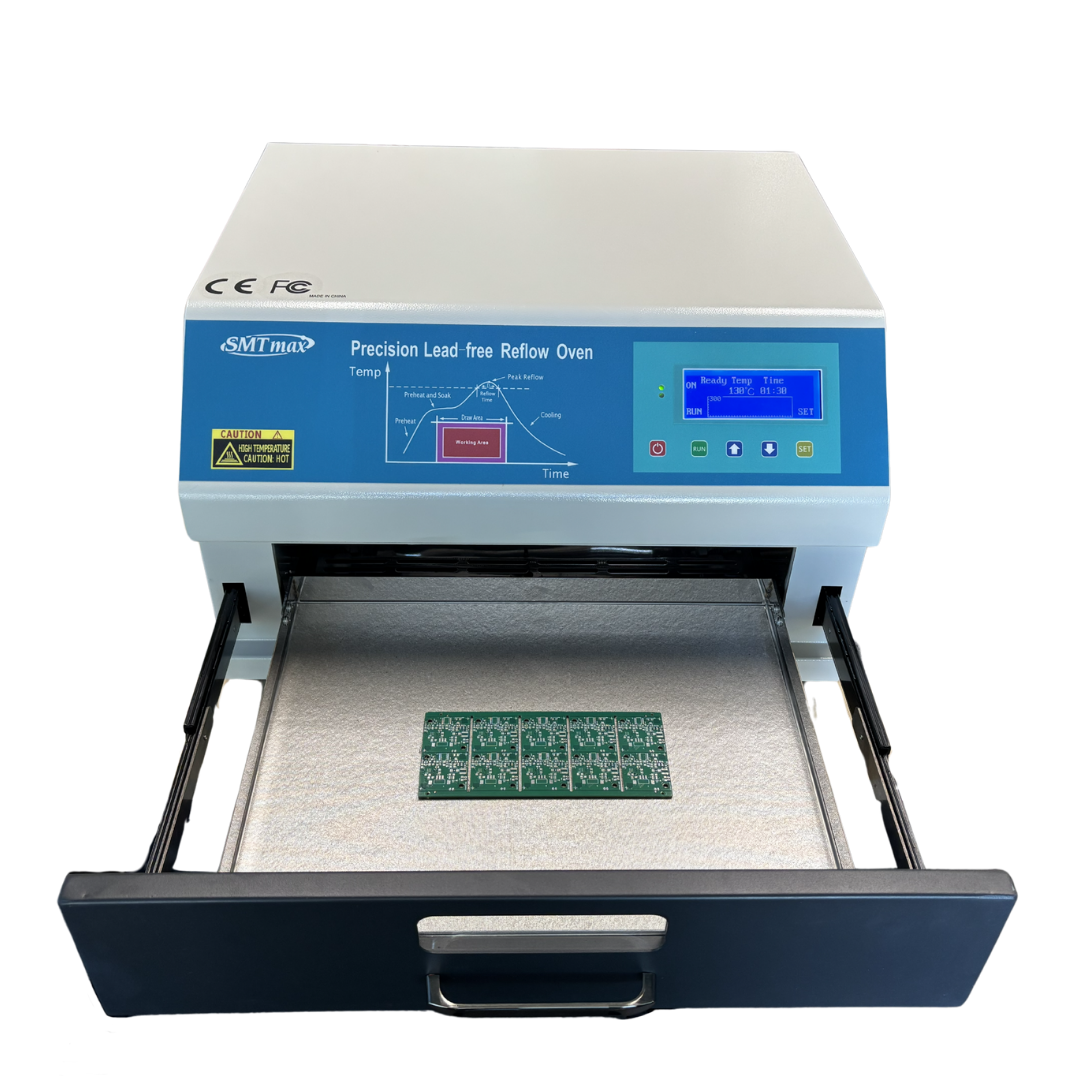

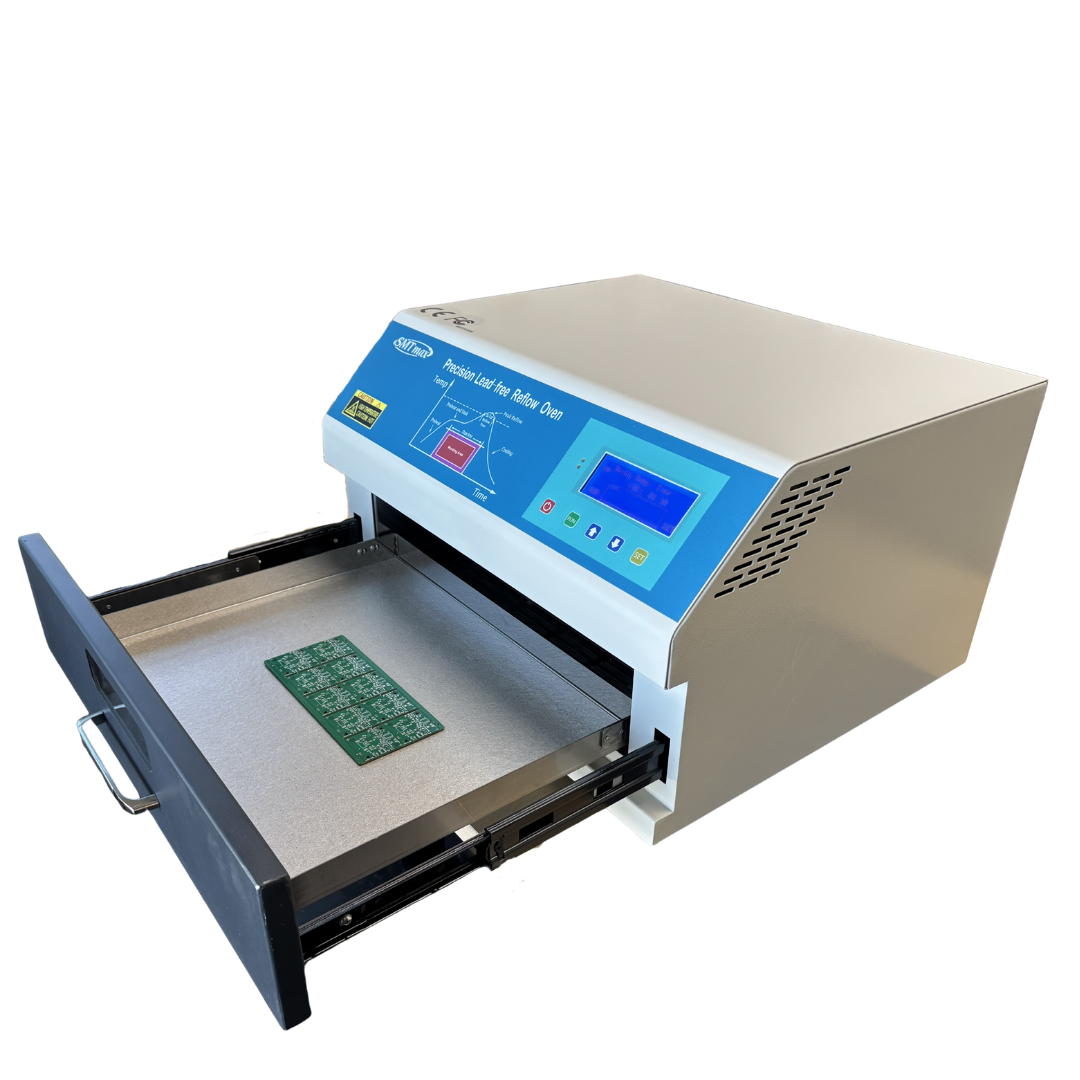

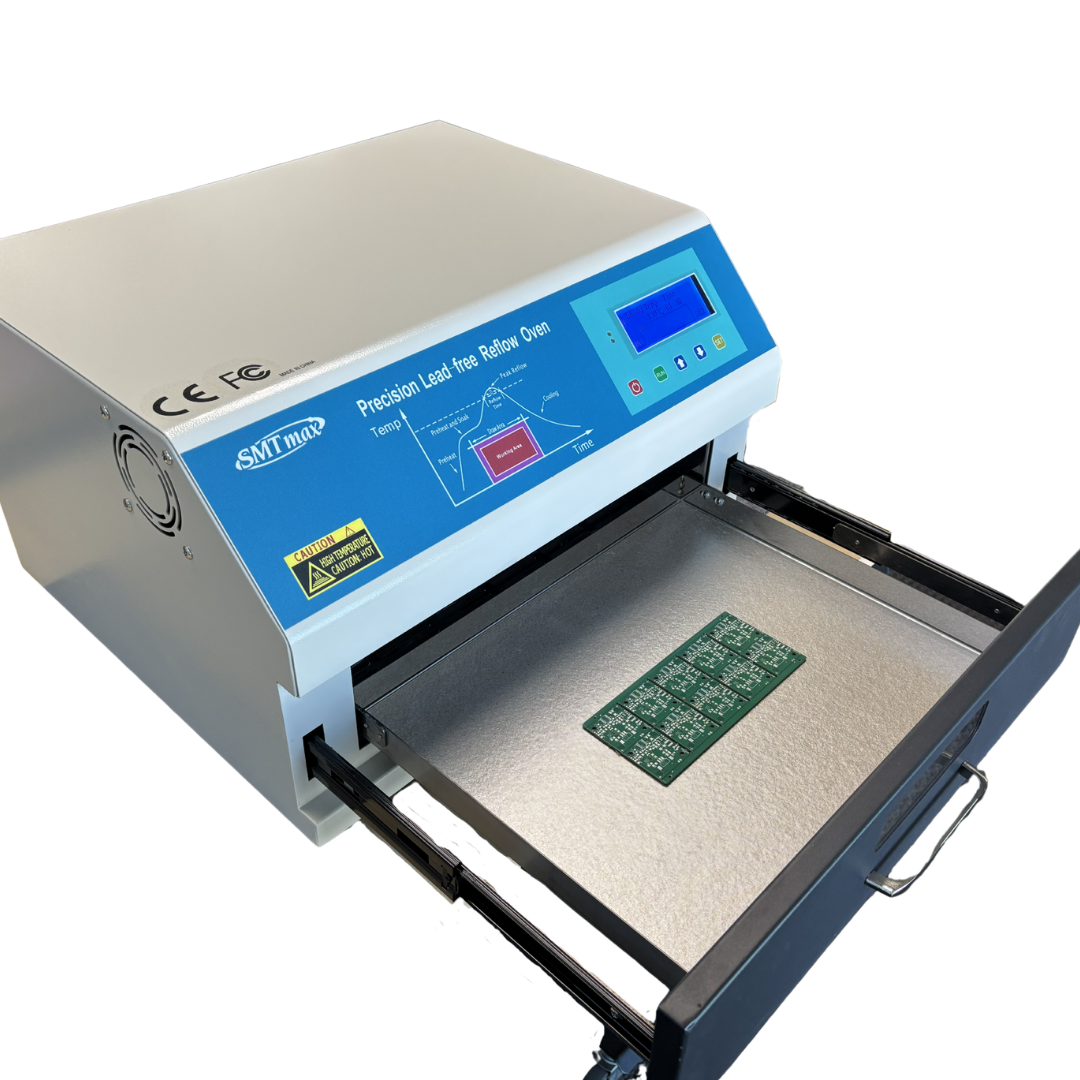

The AS-5080 is designed for users who need more board capacity than the AS-5010 but still want a compact batch reflow process. Its 350 × 300 mm working area provides additional room for larger PCBs and small panelized assemblies.

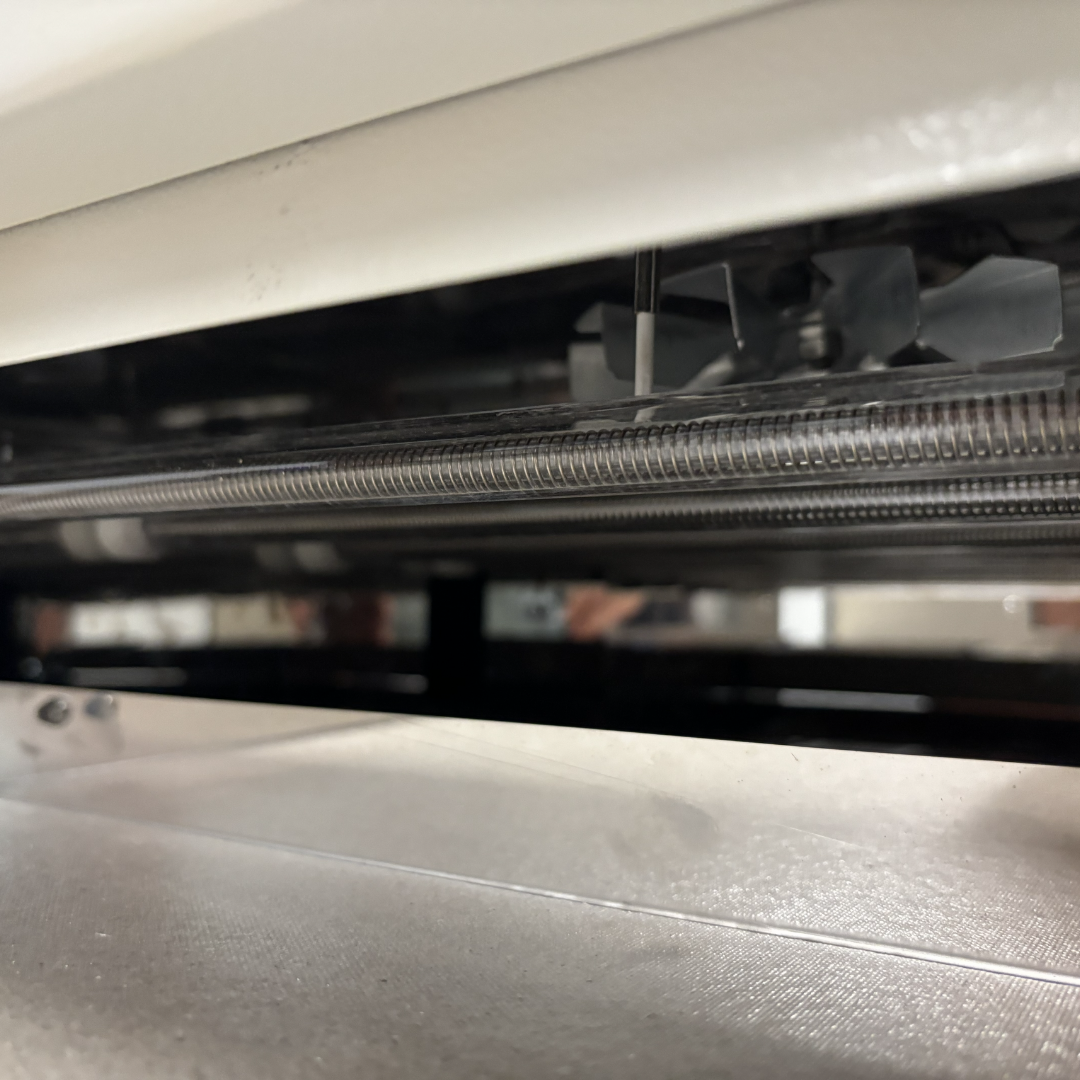

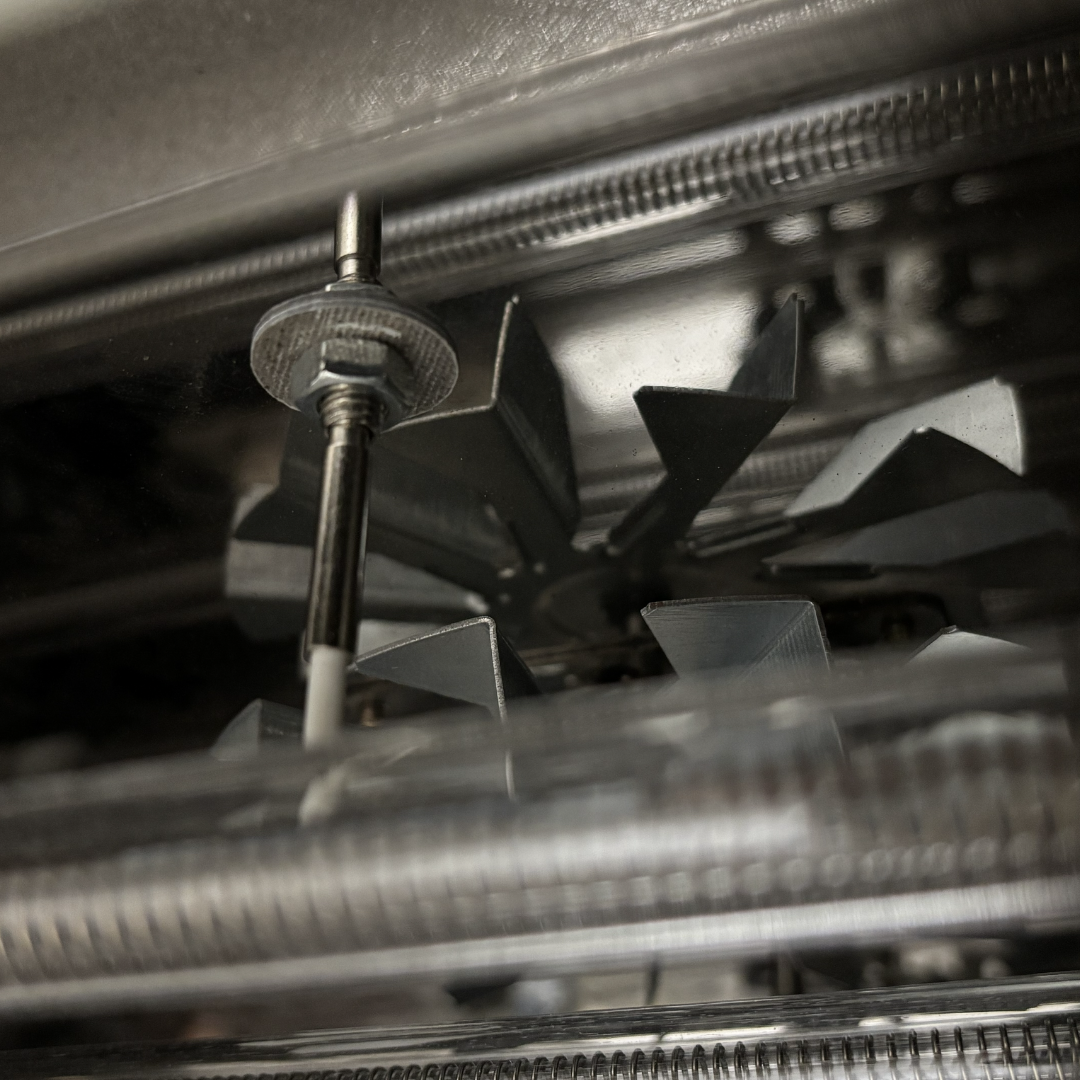

Infrared heating elements work together with internal fan convection to improve heat distribution. The internal microprocessor automatically controls programmed temperature profiles, while the front LCD displays the current temperature and cycle information.
Watch the AS-5080 in operation for a closer look at the drawer, controls, temperature profile and tabletop reflow process.
| Working area | 350 × 300 mm (13.75 × 11.8 in) |
|---|---|
| Maximum output power | 2,400 W |
| Heating method | Infrared radiation heating + hot-air circulation |
| Voltage | AC 110 V; 220 V option available by order |
| Frequency | 60 Hz |
| Preheat range | 70–150°C, 0–5 minutes |
| Soak range | Up to 250°C, 0–5 minutes |
| Reflow range | Up to 300°C, 0–30 seconds |
| Heat holding range | 150–250°C |
| Programming | Preset automatic soldering modes plus custom temperature programs |
| Display | Front LCD with real-time temperature display |

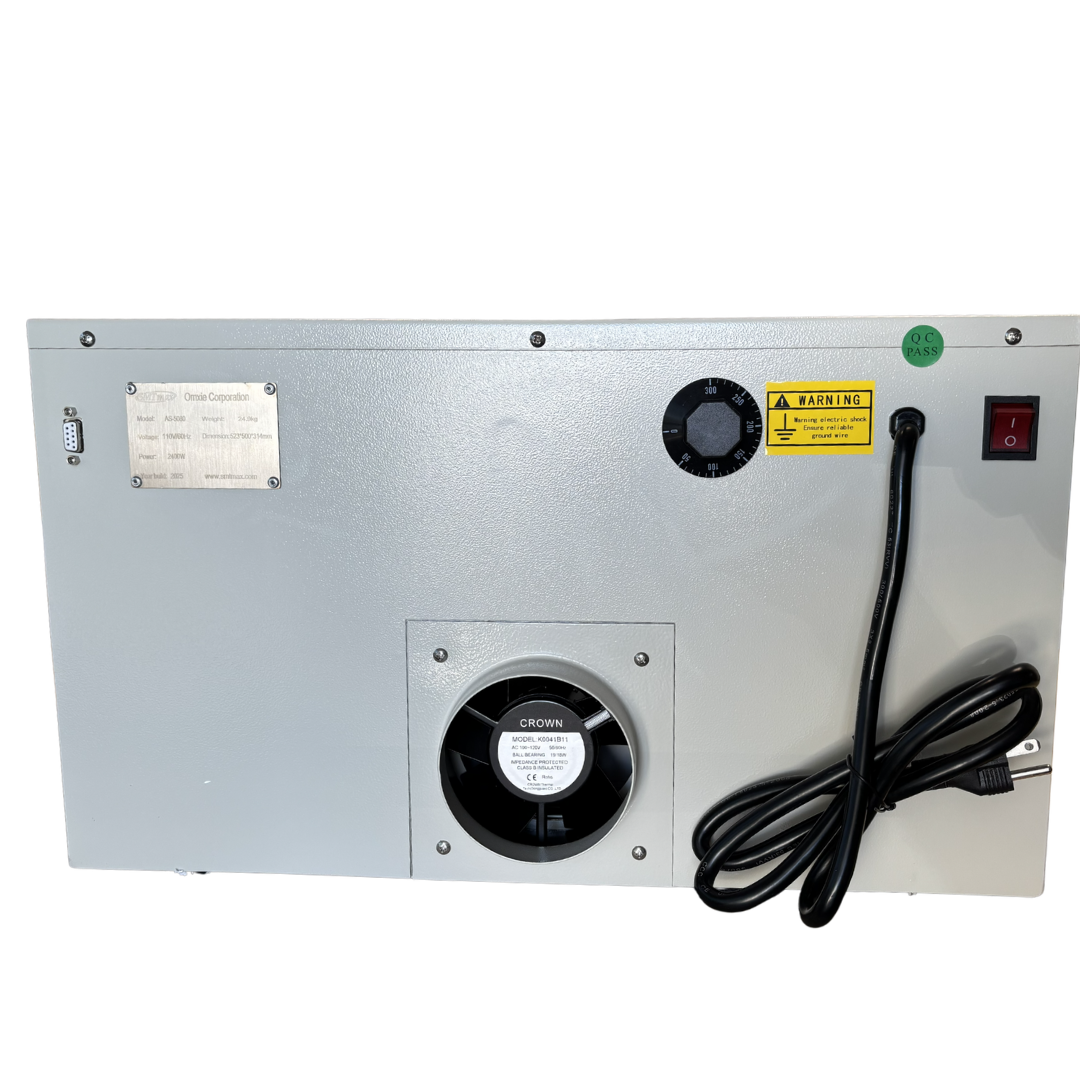

| Computer connection | RS-232 |
| Approx. unit size | 20.5 × 19.6 × 12.3 in |
Send us your PCB dimensions, solder paste information and production goals. We'll help confirm whether the AS-5080 is the right tabletop oven for your process.
