Compact hot air pencil designed for fine components and high-density circuit boards, with independent airflow and heater controls, a diaphragm pump and a 100–500°C working range.

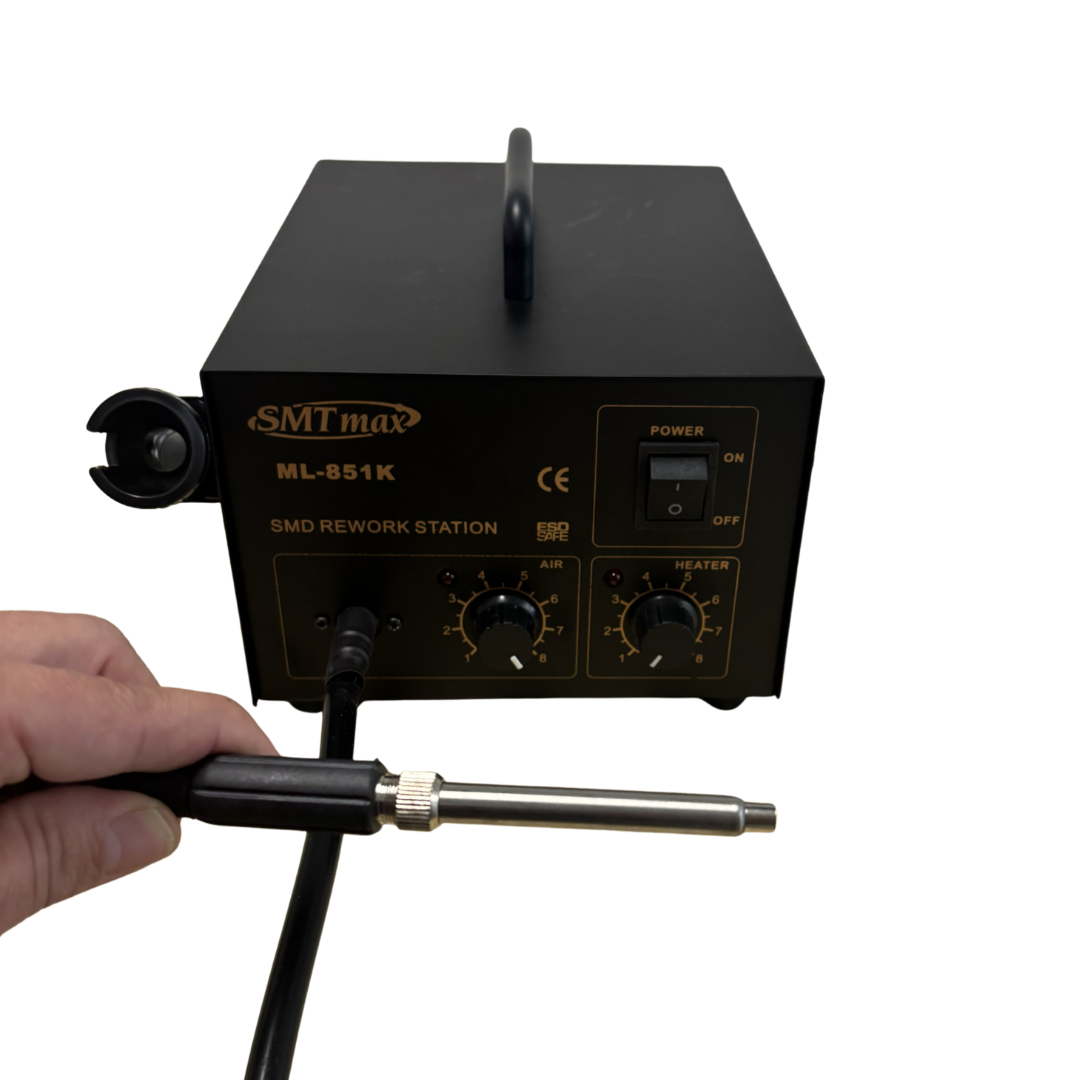

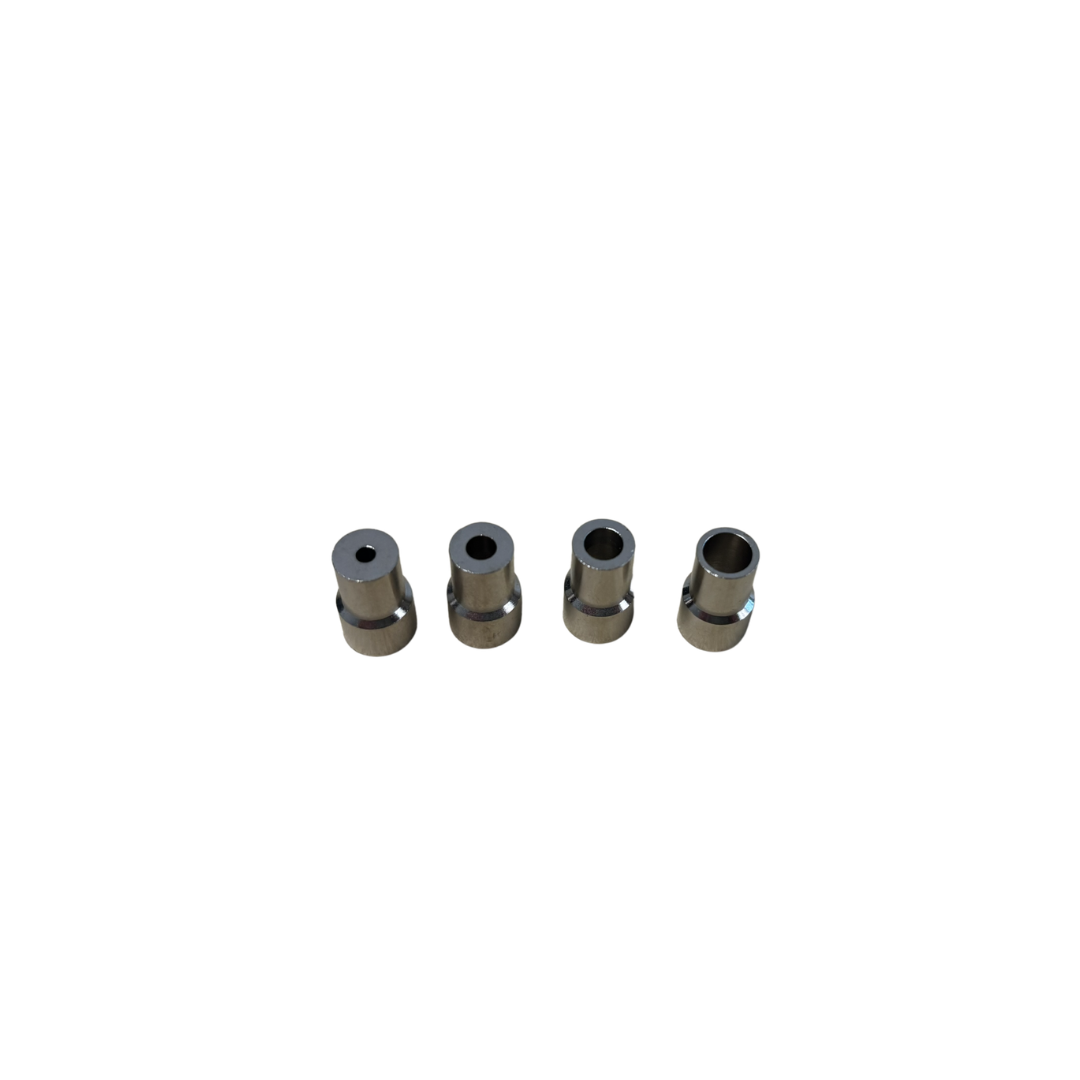

The narrow hot-air handpiece and interchangeable nozzles make the ML-851K useful for localized heating and SMD rework where a larger hot-air gun would be less precise.

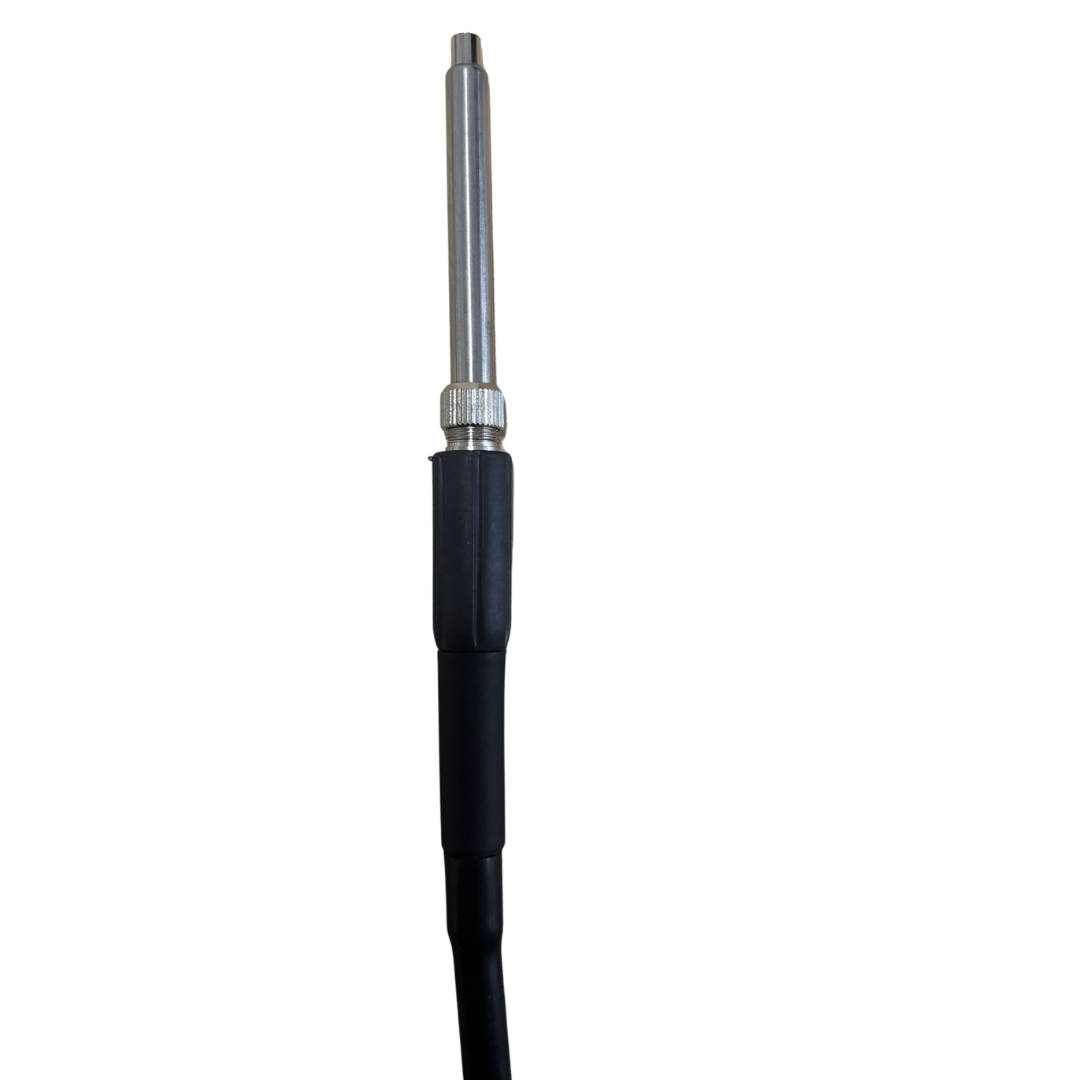

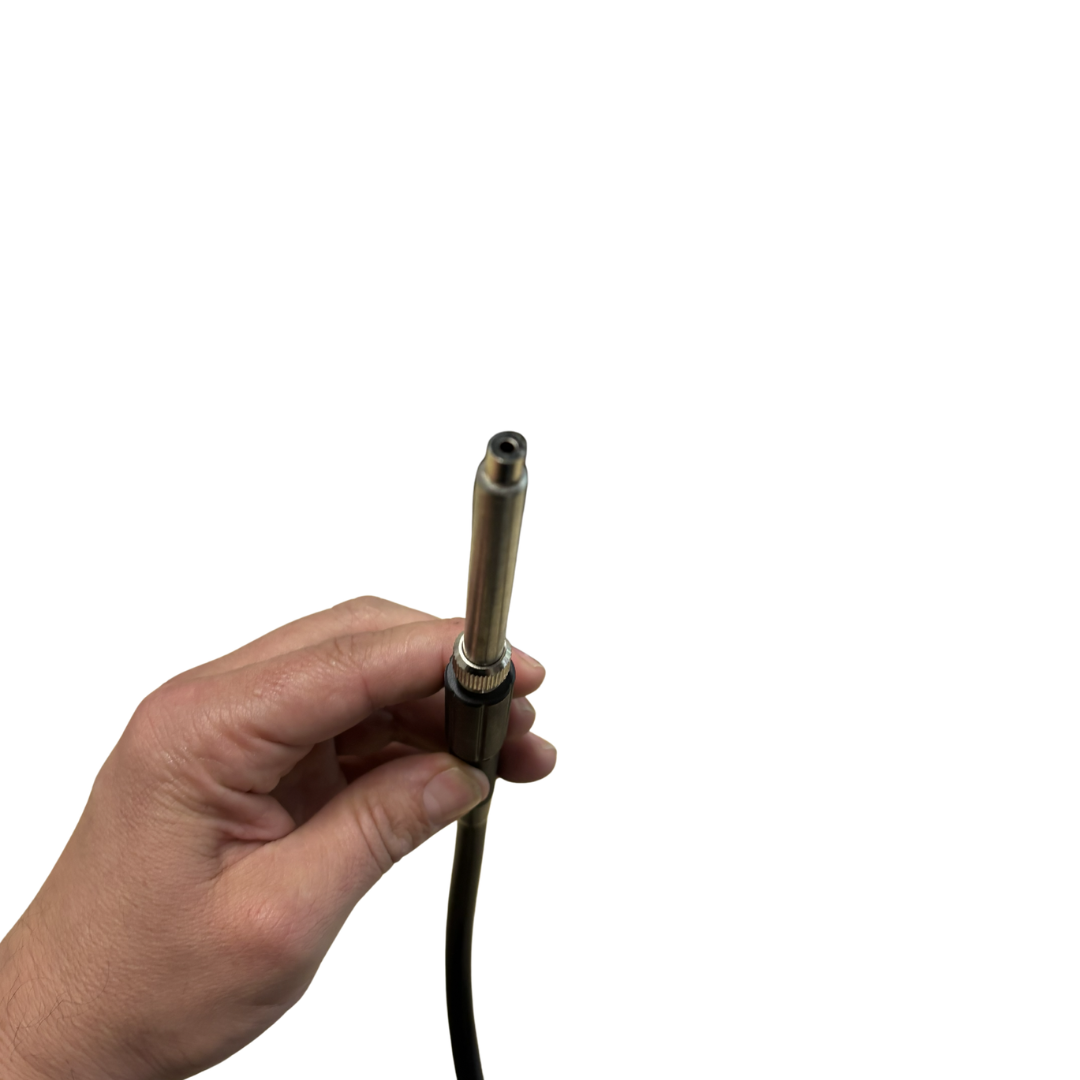

The ML-851K is a compact hot air rework station built around a pencil-style handpiece with small interchangeable nozzles. It is intended for localized heating on fine components and high-density circuit boards where controlled airflow and a narrow working area are important.

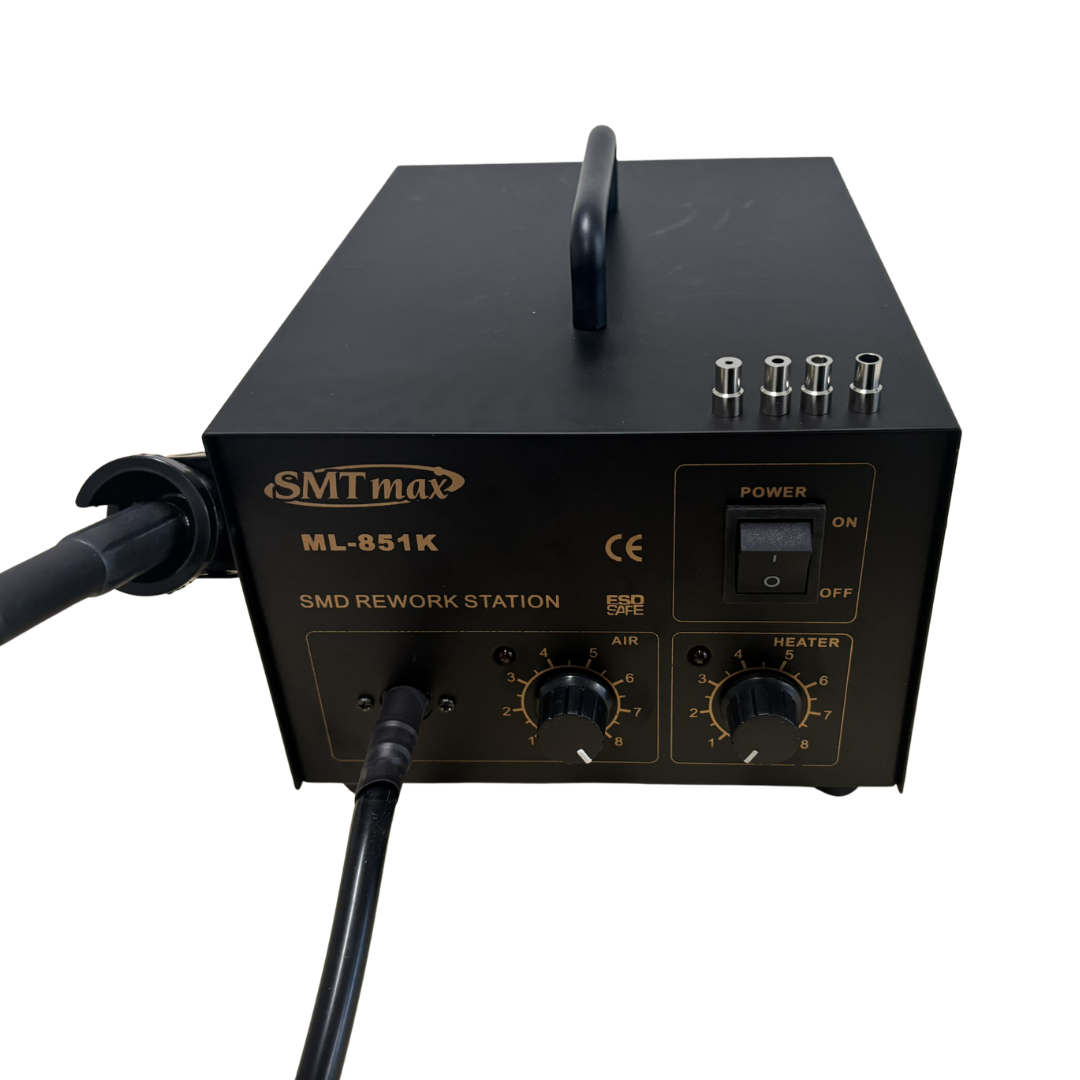

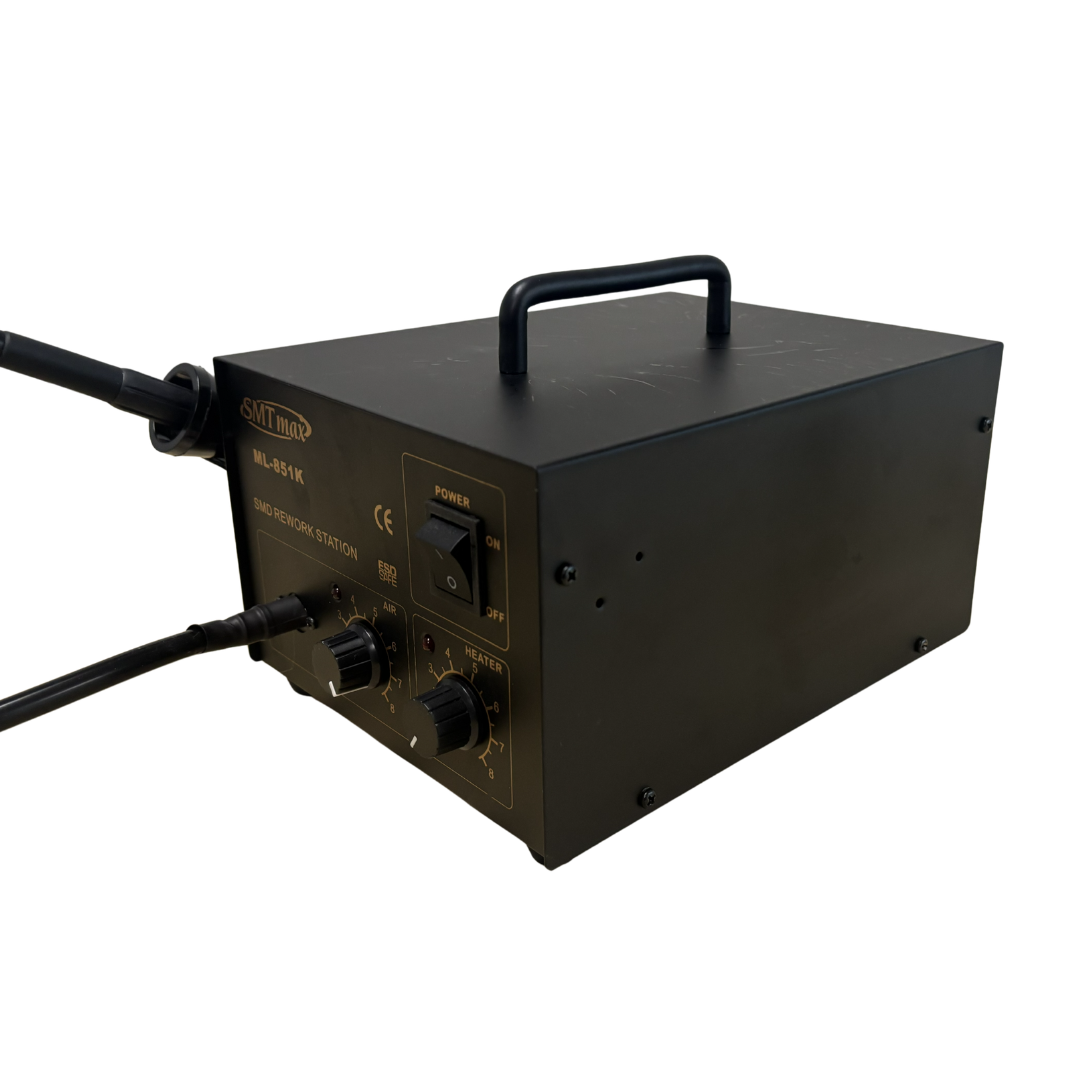

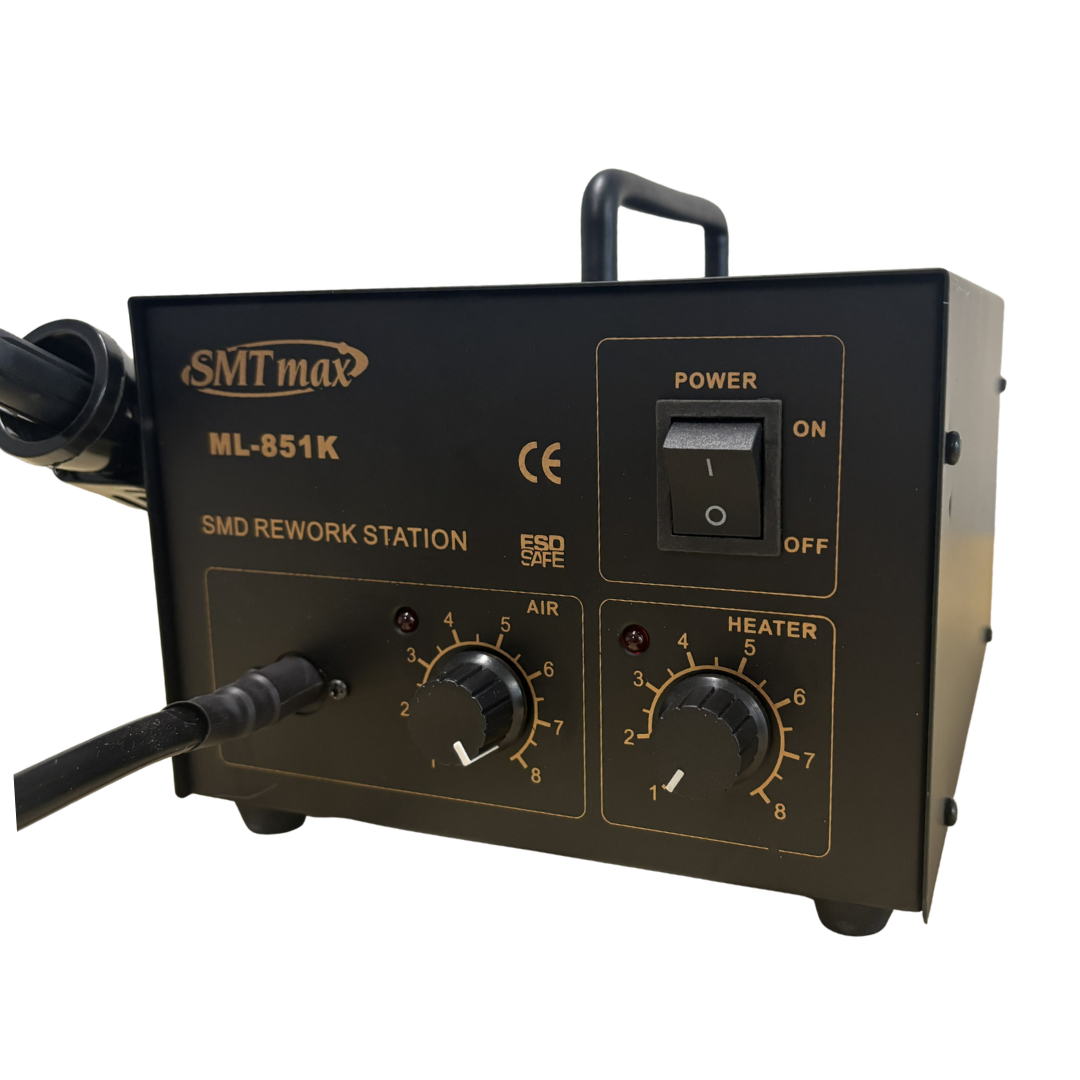

The station uses a diaphragm pump with adjustable airflow from 0.3 to 6.5 L/min and an 80W ceramic heater capable of 100°C to 500°C hot-air output. Separate front-panel controls allow the operator to independently adjust airflow and heater level for the application.
When a product video becomes available, this section can be updated without changing the rest of the page.
| Model | ML-851K |
|---|---|
| Type | Hot air pencil / SMD rework station |
| Input voltage | 110 V or 220 V AC |
| Power consumption | 85 W |
| Pump type | Diaphragm pump |
| Air flow rate | 0.3–6.5 L/min |
| Pump power | 10 W |
| Heating element | 80 W ceramic heater |
| Hot air temperature | 100°C–500°C |
| Temperature accuracy | ±3°C |
| Quick start time | Less than 28 seconds |
| Soldering iron tips | Standard |
Tell us the components and PCB work you are doing and we can help confirm whether the ML-851K is a good match for your application.
